JavaScript implementation of Time Style Sheets (TSS)
Introduction Documentation Usage Examples Credits License

Introduction

Time Style Sheets (TSS) is a set of document extensions that allow timing and synchronization of HTML elements within a Web page to be specified with CSS – a style sheet language conceived primarily for describing the look and formatting of a document. TSS specifications are declarative and follow the same CSS rules of cascade, specificity and inheritance. It builds on a subset of the Basic Synchronized Multimedia Integration Language (SMIL) timing model that defines when elements in a presentation get scheduled and, once scheduled, how long they will be active.

Timing properties are named after similar concepts that are already in use within the CSS3 Animations and Transitions. Although TSS timing properties and values are specified using the CSS syntax, they can also be read and modified via JavaScript. This provides a clean mechanism to add limited functionality to the existing CSS specification without major integration overhead. Besides the specification of an element’s temporal behavior, TSS also allows for playback control through CSS-like properties.

Timing Events extend current DOM events and follow the W3C DOM Level 2 standard model, which can be normally used within HTML elements. Alternatively, it is also possible to register/unregister event listeners on event target objects using the JavaScript methods addEventListener and removeEventLister, respectively. Complementary, TSS pseudo-classes can also be used to define specific presentation styles for different playback phases, in particular, when the playback cycle effectively starts (after timing-delay is computed) or ends.

Documentation

The documentation of the JavaScript library implementation can be found in the docs folder. In this section we provide an overview of the facilities provided by Time Style Sheets to encode temporal presentations on the Web. For more details, please refer to:

Rodrigo Laiola Guimarães, Dick Bulterman, Pablo Cesar, and Jack Jansen. 2014. Synchronizing Web Documents with Style. In Proceedings of the 20th Brazilian Symposium on Multimedia and the Web (WebMedia ‘14). ACM, New York, NY, USA, 151-158. DOI=10.1145/2664551.2664555 http://doi.acm.org/10.1145/2664551.2664555

Timing properties and values

TSS defines a set of timing properties and values within the CSS language as summarized below. Note: the default value is specified within parenthesis.

A description of property values follows.

Timing events and pseudo-classes

The Timing Events proposed in the Time Style Sheets specification are:

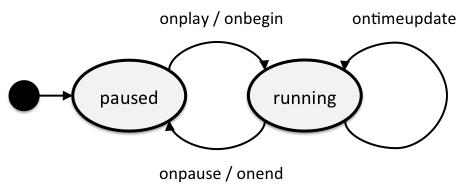

State machine and associated events

Timing Events can be normally used within HTML elements as shown below.

HTML Syntax: <element onbegin="SomeJavaScriptCode">

JavaScript Syntax: object.onbegin=function(){SomeJavaScriptCode};

In the TSS framework, 2 pseudo-classes have been defined to style an element’s presentation, as follows.

Timing pseudo-classes and associated styles can be specified in the stylesheet as usual.

selector:active { /* after computing delay */
  property: value;
}

selector:not-active { /* applied onend */
  property: value;
}

A simple example of integrating the TSS functionality to a Web document is given below. The <div> element named slideshow is defined to behave as a SMIL sequential container that will be played infinite times. The children elements, in this case the <img> elements, also have timing properties to control their temporal behavior. The presentation of an image will start immediately one after another, and each will last for 2 seconds. The exception is the last image, which will start with a 1-second delay as specified in the inline style. Note that timing properties can also be easily combined with existing CSS properties.

<div id="slideshow">
  <img src="img1.png" />
  <img src="img2.png" />
  <img src="img3.png" style="timing-delay:1s" />
</div>
<style>
  #slideshow {
    timing-container: seq;
    timing-interaction-count: infinite;
  }

  #slideshow img {
    timing-delay: 0s;
    timing-duration: 2s;
    border: 1px solid green;
  }

  #slideshow img:active {
    /* not necessary in this example */
  }

  #slideshow img:not-active {
    display: none;
  }
</style>

<script>
var slideshow = document.getElementById("slideshow");
slideshow.addEventListener("onbegin", function(ev){
  ev.stopPropagation();
  console.log("slideshow started!");
});
</script>

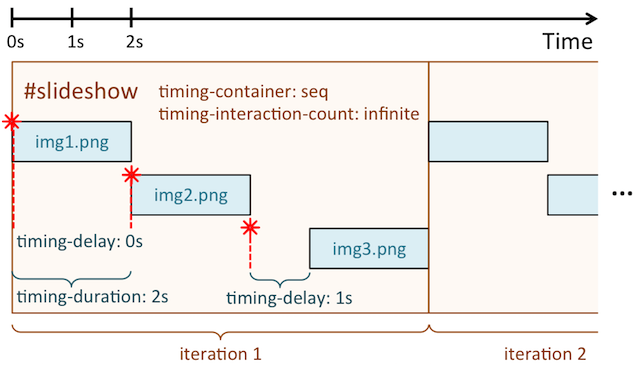

Slideshow example: each image waits for the previous child of the sequence to finish, and then it plays.

Usage

We developed a JavaScript TSS compliant agent composed of a parser that interprets a TSS definition and a renderer that implements the semantics specified in such document. Our implementation relies on JSCSSP, a CSS parser in JavaScript. To make use of our TSS proof of concept, an author just needs to download the JSCSSP library here and import the JavaScript files in the head of the HTML document, as follows:

<script type="text/javascript" src="cssParser.js"></script>
<script type="text/javascript" src="timestylesheets.js"></script>

Once the page is completely loaded by the browser, the TSS parser examines the associated styles and triggers a custom ontssparserready event. At this moment, a TSS renderer that listens to such event takes over and schedules the document presentation accordingly.

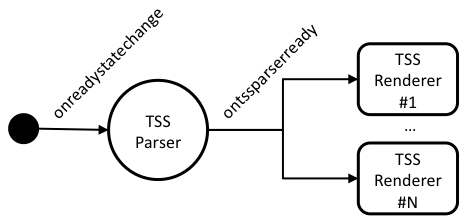

Implementation diagram.

Examples

This repository contains basic code examples for the TSS parser and renderer to help you understand how to use this JavaScript implementation of Time Style Sheets.

Credits

The initial code was developed by Rodrigo Laiola Guimarães at IBM Research.

License

Mozilla Public License version 1.1.
